SU – 6500
$275.00

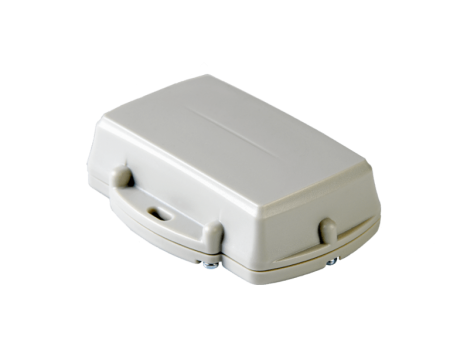

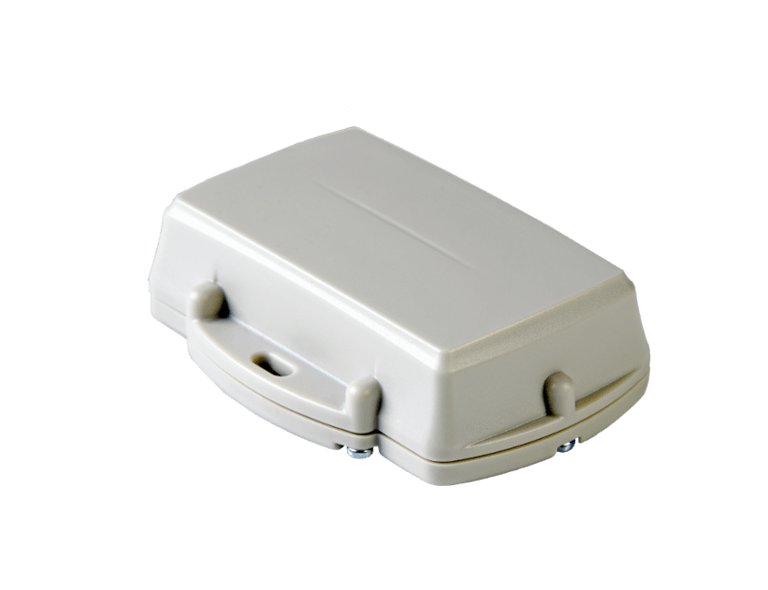

The SU-6500 is a small, perfectly formed high-quality GPS Tracking unit with a battery life of up to 3 years.
Rated to IP67, it’s waterproof and dustproof, making it ideal for both internal or external installation.
Replacing the battery is quick and inexpensive. The SU-6500 uses 3 Energiser AAA Lithium batteries.
Low ongoing costs.
Plans are just $10 a month. Pay annually, and we’ll give you two months service FREE!
Batteries Included
Description
lATEST 4g cAT m1
Our system uses the very latest 4G Cat M1 mobile network to deliver a secure, reliable level of service.
Superior Quality – Smarter Technology – Lifetime Warranty
Like all of our Tracking products, the SU-6500 provides more than just a dot on the map. From smarter technology, to fixed low ongoing costs, Simply Unified are dedicated to providing class leading service backed by our 14 day money back guarantee and lifetime product warranty.
ip67 rated
Rated to IP67, the SU-6500 is waterproof and dustproof, making it ideal for both internal or external installation. The SU-6500 is suitable for a wide range of applications, including trailers, container, in fact, anything you need to track!
Up to 3 year battery life
Battery technology and battery management have seen massive improvements recently. Using our cutting edge technology, we can deliver up to 3 years of battery life.
THEFT PROTECTION AND RECOVERY
In Australia, hundreds of vehicles, boats, bikes, caravans and other valuable assets are stolen every single day.Using a quality GPS Tracking system from Simply Unified will give you far more information and should the worst happen, you’ll stand a real chance of getting your gear back.
BUSINESS GRADE REPORTING
Erratic driving not only increases the risk of an accident, but it also increases fuel use, wear and tear and maintenance costs. Our systems provide details on driver behaviour. Features include harsh acceleration, cornering and heavy braking.
Choose your plan
Packages from $99 a year: includes FREE App and unlimited users!
| Track 1 | Track 4 | Track 24 | Track Unlimited | |
|---|---|---|---|---|
| Lifetime Warranty | ✔ | ✔ | ✔ | ✔ |
| Daily Updates Included | 1 Update | 4 Updates | 24 Updates | Unlimited Updates |
| Geofencing | ✔ | ✔ | ✔ | ✔ |
| Basic Reporting | ✔ | ✔ | ✔ | ✔ |
| Customised Reporting | ✔ | ✔ | ✔ | ✔ |
| Email Alerts | ✔ | ✔ | ✔ | ✔ |
| Push Alerts | ✔ | ✔ | ✔ | ✔ |
| 24 Hour Support | ✔ | ✔ | ✔ | ✔ |
| Monthly Service Plan | $10 | $14 | $17 | $24 |
| Annual Service plan | $99 | $140 | $170 | $239 |
| Pay annually and get 2 months FREE! | ✔ | ✔ | ✔ | ✔ |
Detailed Movement Reporting
The amazing flexibility of the SU- 6500 can be set to report locations based on specific needs.
Flexible configurations just choose the plan to suit your needs.
The SU-6500 Mini can be configured to suit any business need. Configurations can be remotely changed any any time . Configurations are almost limitless . We’ve put together some of the more popular configurations. For heavy duty applications where extended battery life is needs, we recommend the SU-6800
Example 1 – Periodic updates
Using this configuration the SU – 6500 can report a location at regular intervals, for example 4 daily updates
Example 2 – Motion based
With this configuration the SU-6500 will provide a location on movement staff and movement end
Example 3 – Motion based with breadcrumb
All the benefits of the motion based configuration with addition of recording an update every 2 minutes uploading the updates every 30 minutes.
Jostle Mode
This feature can be added to any profile and provides updates on small movements whilst maximising battery life. Ideal when assets are being moved around a yard
Key Features
Optional Immediate updates on:
- Trip start
- Trip end
The SU-6500 will track successfully where other devices just give up.
This fantastic technology allows the GPS to predict which satellites are in orbit above it and to dramatically reduce the time-to-first-fix of the GPS, and the overall performance of the GPS, especially in ‘urban canyon’ or forested environments
A future firmware version will allow for harsh G-force detection (like assets being dropped or involved in accidents) and report these to the server
The SU-6500 Mini has the capacity to hold hundreds of geo-fences that can be downloaded to it from the server. The SU-6500 can use this geo-fence information to:
- Implement arrival and departure alerts
- Implement speeding zones with audible warning alerts
- Implement “No-go” and “Keep-out” areas
- Automatically control outputs, for example to switch on warning lights when inside a special area
- Warn drivers when approaching dangerous intersections
- Disable data communications within intrinsically safe areas
Hardware Features
Low-profile IP67 rugged housing
The IP67 rated housing is made of sturdy ABS/Polycarbonate plastic to survive bumps and knocks and to survive many years in the sun and weather.
It is low-profile making it easier to mount in the corrugation on containers or concealed on the underside of a trailer, for example.
The housing screws together for easy assembly, and has 2 convenient mounting tabs. It also has ‘strap slots’ allowing the SU-6500 to be cable tied or metal strapped to an asset.
Dimensions: 85 mm x 63 mm x 24 mm (including mounting tabs)
Weight: 160 grams with batteries
Batteries
AAA size:
The SU-6500 uses 3 x “AAA” size 1.5V alkaline or lithium batteries
Off-the-shelf 1.5V Lithium:
The SU-6500 should be fitted with off-the-shelf 1.5V Lithium batteries for operation in cold temperature conditions, or to offer the maximum battery life. These are readily available from retail outlets, for example Energizer Ultimate Lithium.
Battery Life with Adaptive-Tracking
The SU-6500 can be set to use Adaptive-Tracking technology where the accelerometer and GPS or WiFi data are used to intelligently work out if it is moving and to send frequent updates, and to scale the update rate down to once per day if the asset is stationary – to preserve battery life.
3 years @ one position per day (at 25°C).
Operating Temperature
-20°C to +60°C
For operation in extreme temperatures, the SU-6500 must be fitted with Lithium batteries. Batteries are affected by temperature extremes and typical performance is dependent on temperature.
- Supports concurrent GPS and GLONASS and other GNSS systems
- 72 channel high sensitivity receiver
- -167dBm industry leading tracking performance
- Optimal hot-start performance.
UBLOX MAX-M8Q GPS module
Supports concurrent GPS and GLONASS
72 channel high sensitivity receiver
-167dBm industry leading tracking performance
Optimal hot-start performance
AssistNow Offline aiding data for fast time-to-first-fix and performance in urban canyon environments
The SU-6500 uses both the GPS and GLONASS positioning systems simultaneously. This allows the device to use twice the number of satellites to get a position fix – making it faster and more accurate
GPS signals are boosted by a special low-noise amplifier (LNA). This allows the SU-6500 to operate where normal units will fail to receive GPS signal – like in a container stack!
CE, RCM, ICASA A Tick
Internal GPS and Cellular RF antennas tuned by the RF laboratories to ensure optimal performance
The 3-axis accelerometer allows the SU-6500 Mini to ‘sleep’ in an ultra-low power state yet still wake-up when movement occurs.
Future firmware versions will allow for harsh G-force detection (like assets being dropped or involved in accidents)
